  3. Pipe Beveling Machine BBM 24000 Series

6-Point Locking System for Stable Large Diameter Pipeline Processing

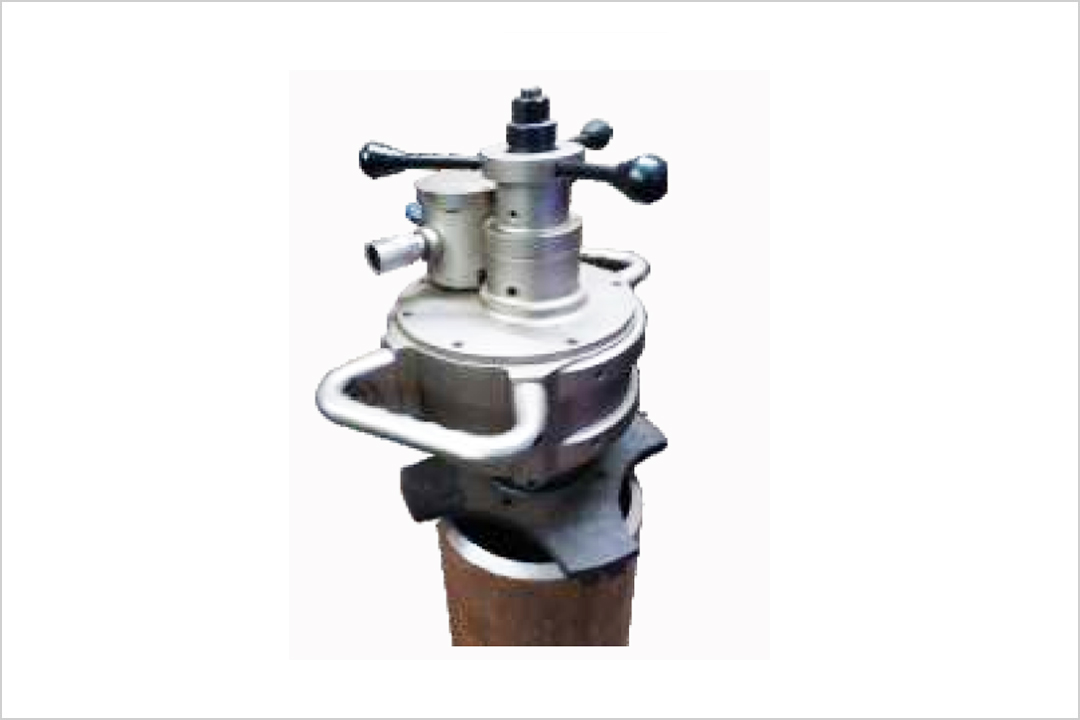

Pipe Beveling Machine BBM 6000 Series

Introduction

Pipe beveling machine BBM-24000 is designed for piping industries and welding workshops for processing pipelines, boilers and fittings. The BBM-24000 is equipped with a 6 points of contact locking system able to grant stability and absence of vibrations during the operations. Available in pneumatic & electric versions.

RANGE : Working range from 7" to 20" (180-504 mm) in standard configuration and up to 24" (609,6 mm) with the optional extension kit.


MODEL
ELECTRIC PNEUMATIC
LOCKING RANGE ID MM 180-600 180-600
IDLE SPEED RPM 12 24
TORQUE NM - -
FEEDING STROKE MM 50 50
PNEUMATIC MOTOR POWER HP 1.85 -
AIR CONSUMPTION CFM 65-70 -
AIR PRESSURE BAR (PSI) 6(90) -
ELECTRIC MOTOR POWER WATT - 1300
WEIGHT KG 250 250
